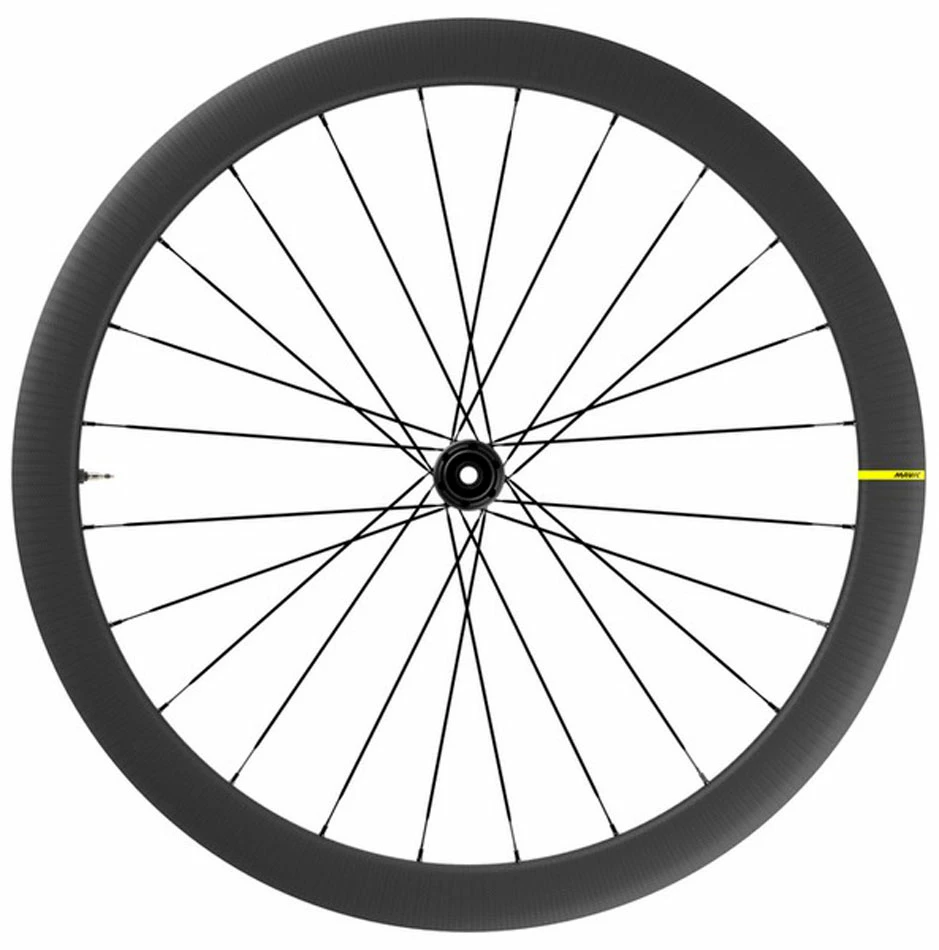

Mavic Cosmic SL 45 DCL Vorderrad

Fast and comfortable at the same time: With the Cosmic SL 45 DCL Disc wheel (Center-Lock) it is especially easy to climb. To get as much energy on the road as possible, the Cosmic SL 45 tubeless is on the move and features high-quality Infinity hubs.

---

Features – Mavic Cosmic SL 45 DCL Disc Center-Lock

• 45mm NACA inspired rim shape minimizes drag for added speed
• Optimized for 25mm tires
• Flat double-butted spokes save weight and improve responsiveness
• Infinity hub platform optimizes lacing and spoke tension to improve wheel stability
• No tubes means less friction, better efficiency and grip, a reduced risk of punctures
• New rim bed shape makes it easier to mount and change tires
• QRM Auto bearing preload technology

Product features

• Use: Road

• Model: Cosmic SL Disc
• Wheel size: 28″
• ETRTO: 622×19
• Rim type: Clincher
• Tubeless ready: ✔
• Bearings: sealed cartridge bearings (QRM)
• Rim inner width: 19mm
• Rim height: 45mm
• Hub axle system: 12 x 100mm thru axle incl. adapter 5mm Quick Release
• Spoke type: straight pull, elliptical aero, double butted (patented)
• Spokes: 24 (2-cross), contactless
• Brake type: Disc Center-Lock
• Recommended tyre sizes: 25mm to 32mm
• Valve hole: Presta / SV Ø 6.5mm
• ASTM Catergory: 2 (road and offroad with jumps less than 15cm)
• Recommended system weight max: 120kg (Rider + Bike + Equipment)

Material

• Rim: Carbon
• Hub: Aluminum
• Spoke: Steel
• Nipples: Steel

Color

• black

Weight (manufacturer information)

• 730g

---

Scope of delivery

• 1 Cosmic SL 45 DCL Front Wheel
• 1 Front QR 5mm adapter
• 1 UST valve and accessories

---

Technologies

Infinity Hub
Comes equipped with the all-new Infinity Hub that harnesses a trinity of hallmarks that enhance power transfer, durability, and compatibility. Offers automatic bearing preload adjustment (QRM Auto). Designed for compatibility and ease of use, the Infinity Hub can be converted to all major and axle dimensions..

UST Tubeless Technology
Traction, control and lightweight. The UST concept improves traction, control and comfort while reducing inertia and flats. Tubeless constructions are lighter, reduce the rolling resistance and provides more comfort.

QRM (Qualité de Roulements Mavic)
Qualité de Roulements Mavic. Mavic only uses high quality sealed cartridge bearings. On QRM wheels, they feature double sealing (2RS or LLU) together with tight C3 internal clearance.
